Part Number: 1JAAYH / Vendor ID #: 104
Enclosure with Emergency Driver for 6" ELO
$139.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 810 items available.
Dimensions
Height: 1.50"
Width: 7.13"
Info & Guides
Product Overview

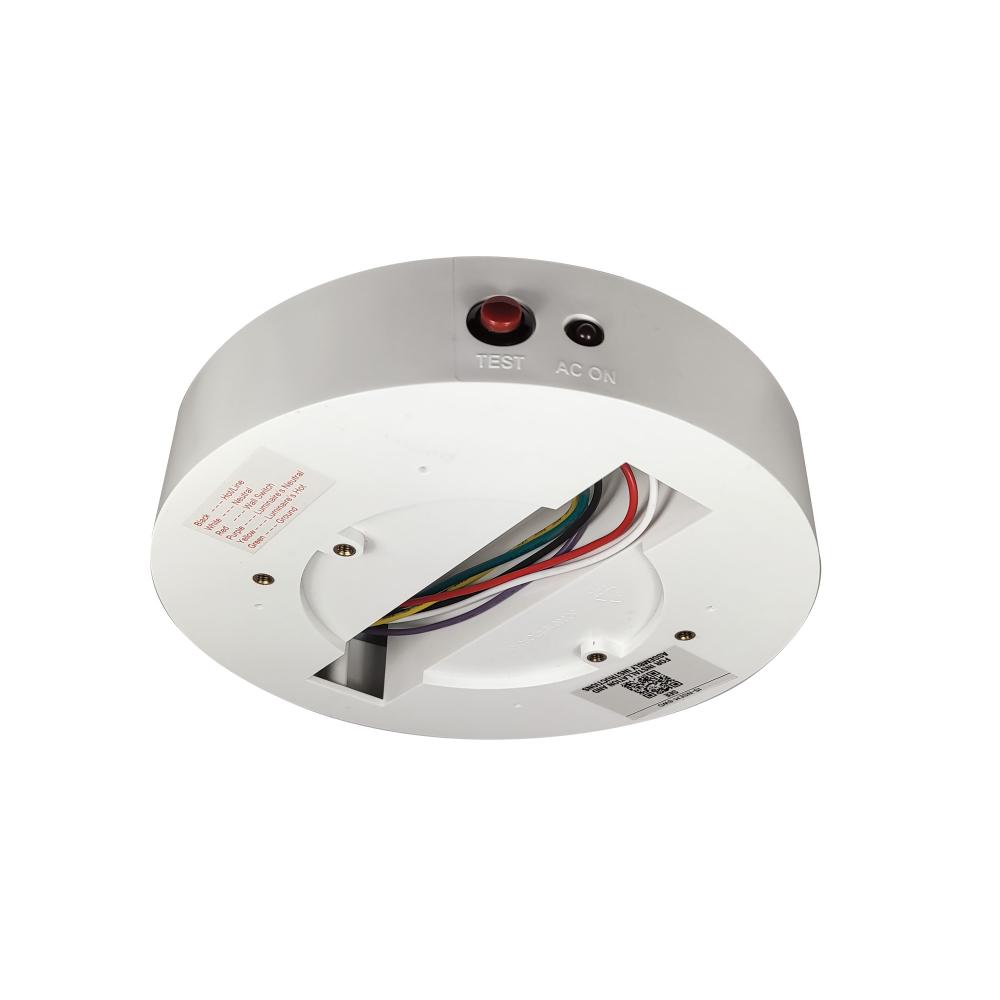

A surface mount enclosure with an emergency LED driver for use with 6" ELO and ELO+ luminaires. It adds 1-1/2" height to luminaire and matches the finish. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.
Input Voltage: 120VAC
Output Voltage: 123/131VDC
Wattage: 3W
Compatible Luminaires: NELO-6RTWMPW, NELOCAC-6RL130W, NELOCAC-6RP
Finish: White
Input Voltage: 120VAC
Output Voltage: 123/131VDC
Wattage: 3W
Compatible Luminaires: NELOCAC-6RL130W & NELOCAC-6RP
Finish: White
 Standard Information
Category:
Utility
Subcategory:
Utility Accessories
Refinement Options
Category:
Surface Mount
Product Line:
LE88
Est. Shipping Wt.:
3
Length:
7.125
Ship Carton Height:
1.875
Ship Carton Length:
7.375
Ship Carton Width:
7.375
Weight:
1.5
Battery Quantity:
1
Battery Type:
Lithium-ion
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
7
Master Box L:
16
Master Box Qty:
12
Master Box W:
16
Master Box Wt.:
21
Product Family:
6" ELO
Safety Listing:
cULus
Wattage:
3W
1.65
