Part Number: 1JA24T / Vendor ID #: 104

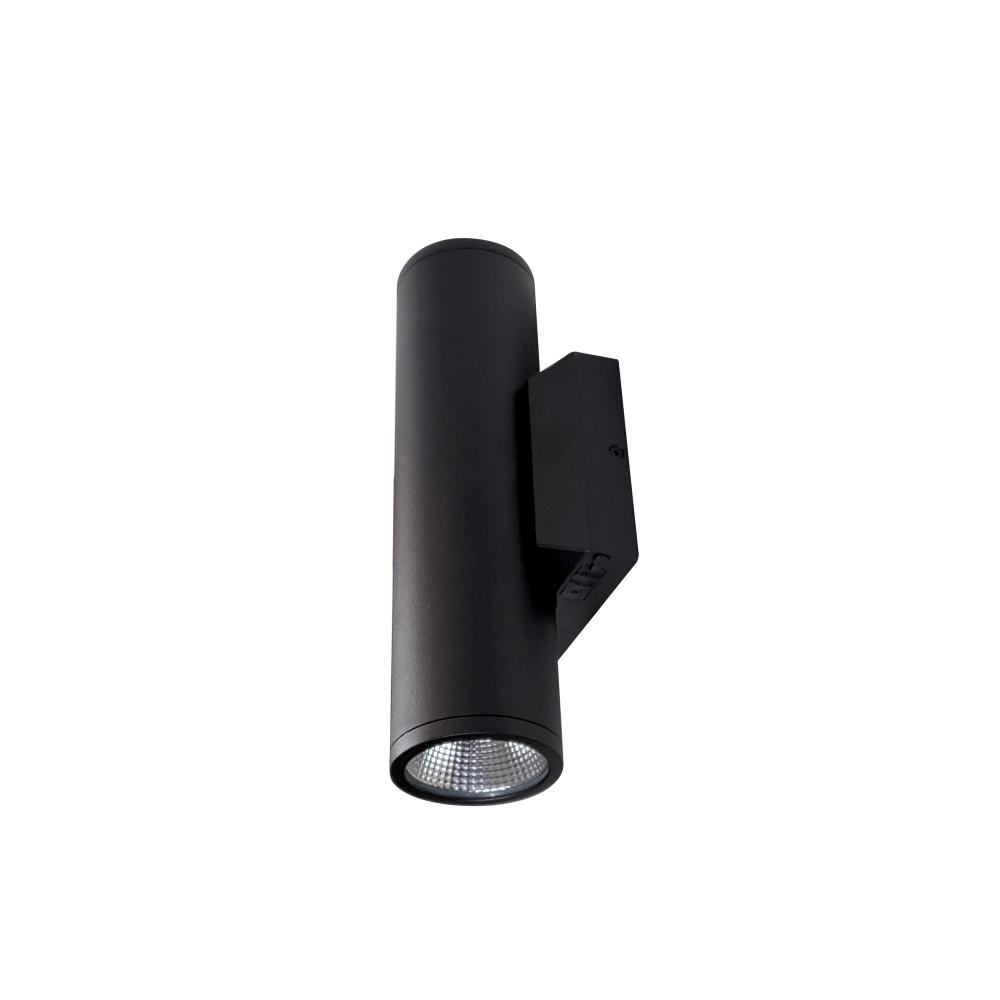

3" Up & Down Wall Mounted LED Cylinder with Selectable CCT, Black finish
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 1 items available.
Dimensions
Height: 11.88"
Width: 4.38"
Info & Guides
Finish: Black
CEC Substitute Item: NYUD-3L1345BZ
Product Overview
Architectural grade ADA Compliant up-and-down wall mount cylinder with dedicated LED attached to a deep cone reflector or baffle for optimal visual comfort. This minimalist yet versatile design can be changed to single direction or up & downlight. Cylinders also include a selectable CCT switch located on the cover plate.
Input Voltage: 120-277VAC
Lumens / Wattage: 3000lm (1500lm per direction) / 35W
Color Temperature: Selectable CCT (3000K/4000K/5000K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
 Standard Information
Category:
Sconces
Subcategory:
Wall Sconces
Option:
Title 24
Refinement Options
Category:
Cylinder
Product Line:
LE45
Est. Shipping Wt.:
4
Length:
5
Lumens / Light Output:
3000lm (1500lm per direction)
Ship Carton Height:
13.375
Ship Carton Length:
5.5
Ship Carton Width:
5.25
Weight:
3.1
CCT:
Selectable CCT (3000K / 4000K / 5000K)
CEC Database:
Y
CEC Item Number:
NYUD-3L1*****
CEC Substitute Item:
NYUD-3L1345BZ
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
14
Master Box L:
12
Master Box Qty:
4
Master Box W:
11
Master Box Wt.:
16
Product Family:
3" Cylinder
Safety Listing:
cETLus
Wattage:
35W
3.4
